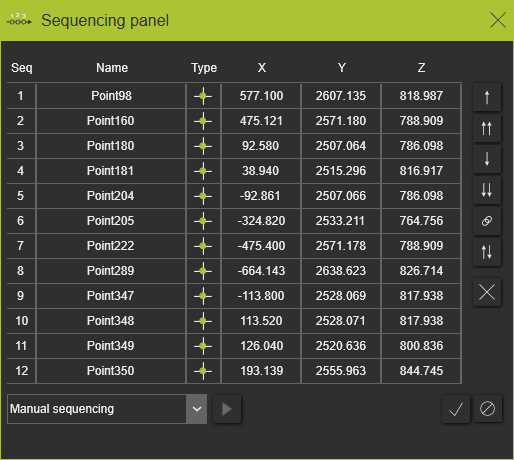

Sequencing panel
The Sequencing panel command opens a panel that contains a list with all selected process geometries from 3D view or from Process geometry dashboard.
The selected process geometry lists contains information’s regarding process geometry order in sequence, process geometry name, process geometry type and X,Y,Z coordinates
Sequencing commands
Move selection one position up
Move selection on the top of the list
Move selection one position down
Move selection on the bottom of the list
Group selection
Reverse sequence
Remove selected from the sequence
Program sequence
Close window
Run selected algorithm
Sequencing algorithms
Travel salesman
With the Travel salesman algorithm the route of the tool path, i.e. the sequence of the operation is recomputed. Define the first and the last process geometry needed using drag and drop or move up down commands into the sequencing list. Press the Run selected algorithm command after the start and end process geometry set in the sequencing list.

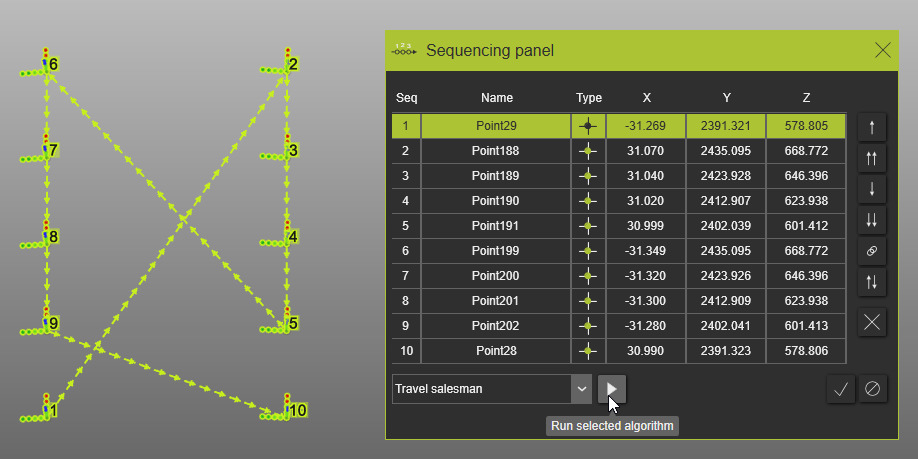

Before:
After:
Sequence along X axis
With the Sequence along X axis algorithm the sequence is performed from the first to last process geometry in the sequencing panel into the X direction (red compass arrow) of the world axis system
Before:
After:
Sequence along Y axis
With the Sequence along Y axis algorithm the sequence is performed from the first to last process geometry in the sequencing panel into the Y direction (green compass arrow) of the world axis system

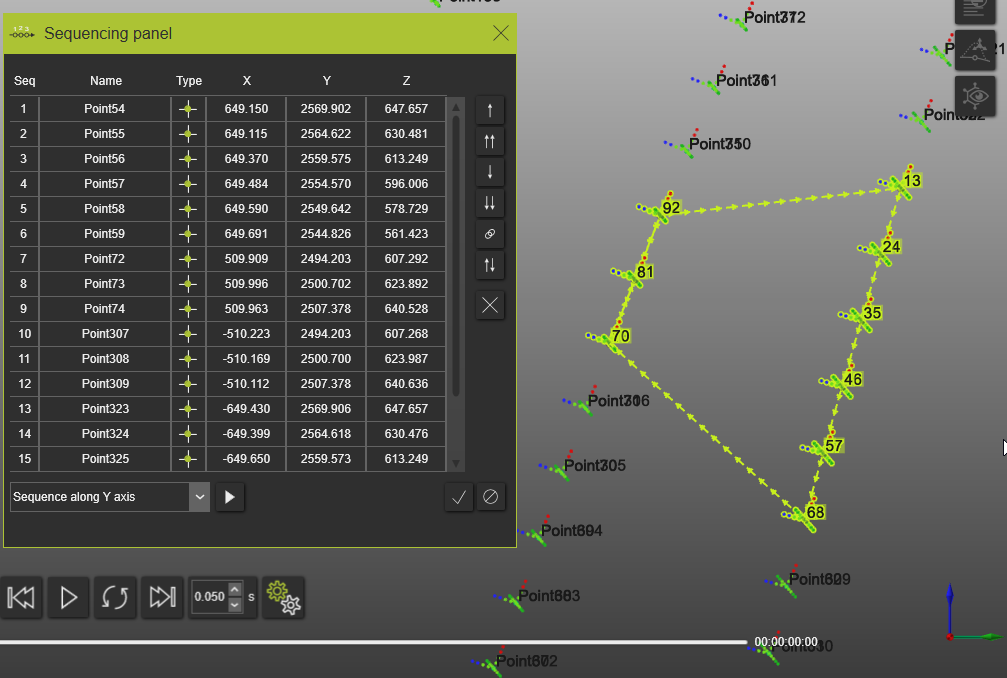

Before:

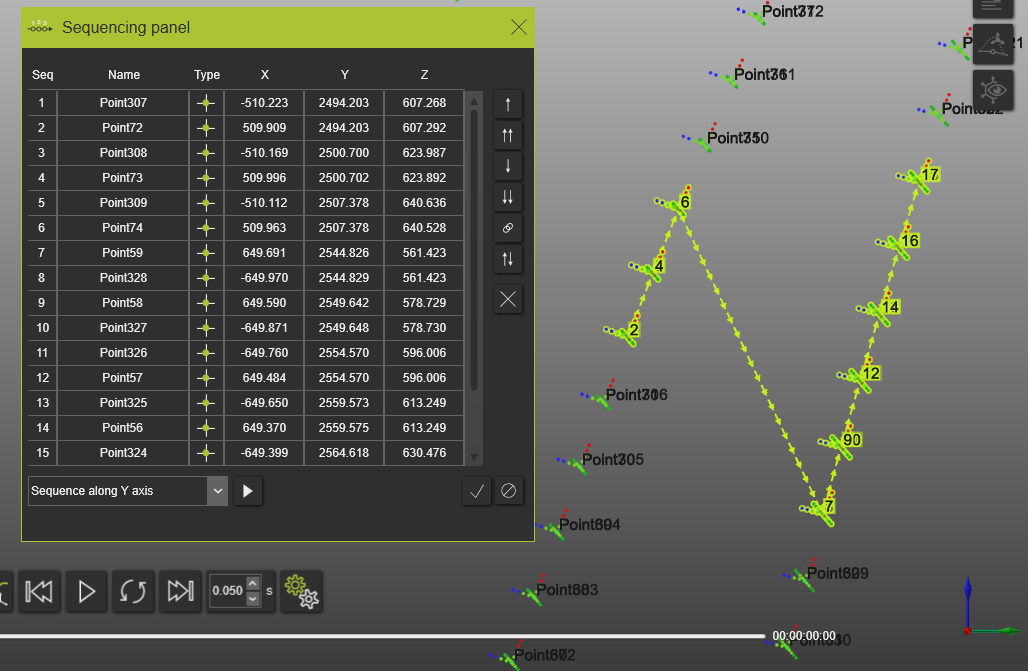

After:
Sequence along Z axis
With the Sequence along Z axis algorithm the sequence is performed from the first to last process geometry in the sequencing panel into the Z direction (blue compass arrow) of the world axis system

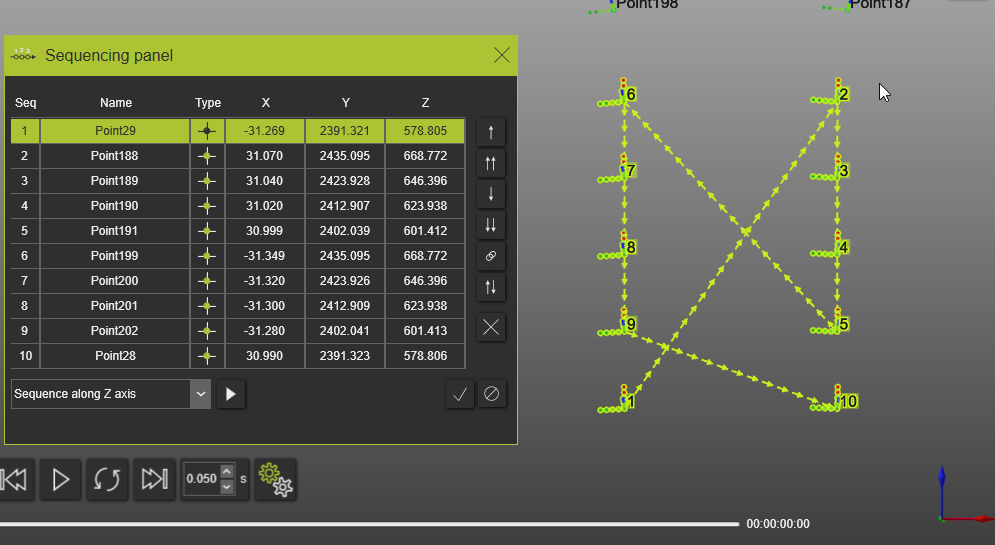

Before:

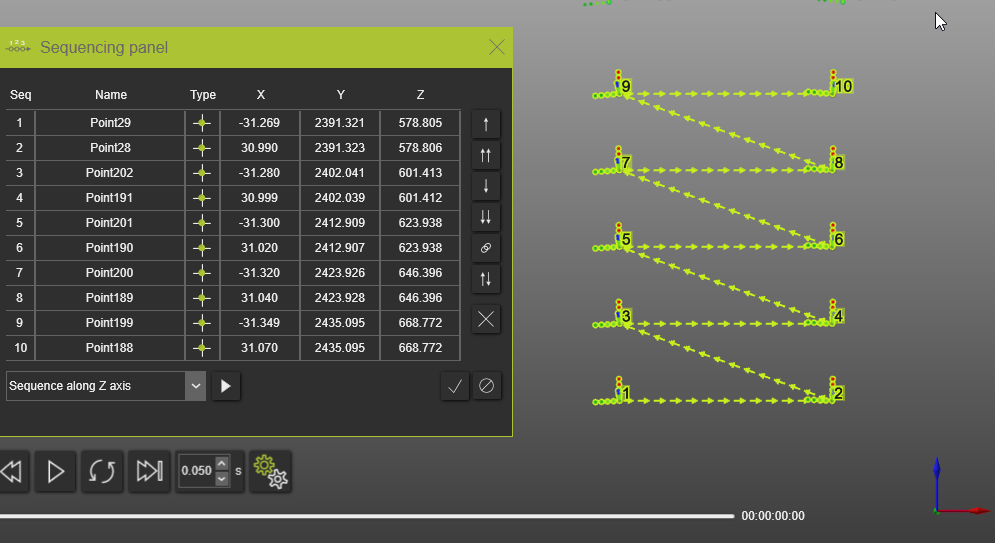

After:
