Machine/Robot Swap

With the Machine/Robot swap approach it is possible to switch on a different machine/robot without re-programing, preserving the path structure, the existing events and attributes. The controller specific adaptations occur automatically.

For example a laser cutting program created for machine A (e.g. Trumpf) can be easy transfer to Machine B (e.g. Prima)

Workflow:

1. Save the program from the source machine (Machine A) using the save command located into program manager pie menu

2. Load the target machine (Machine B)

3. Load same workpiece and fixture on the target machine

4. Load the saved program to the target machine (Machine B) using the load command located into program manager pie menu

5. Optional: View the synchronization report displayed in E2 Log

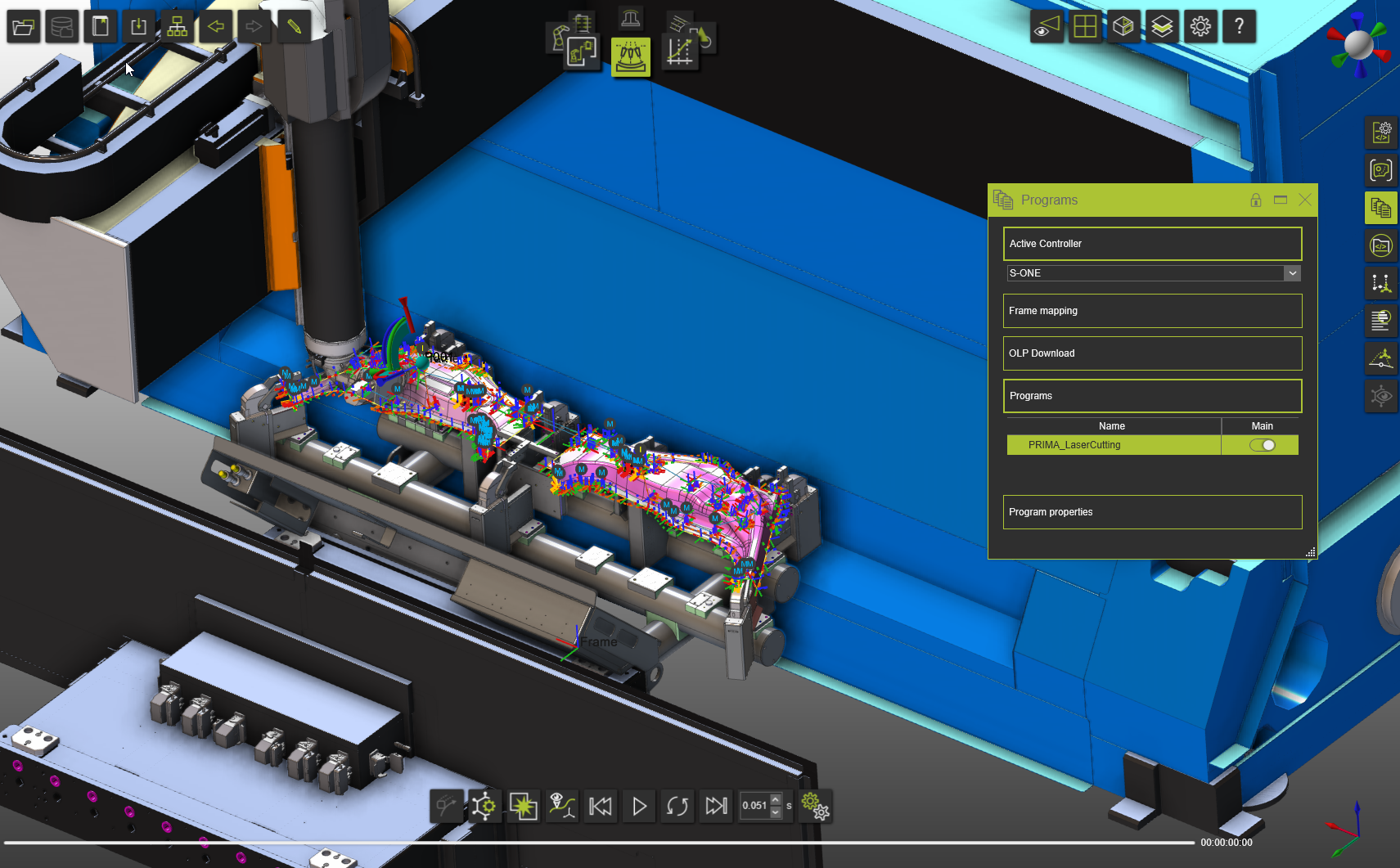

Machine A:

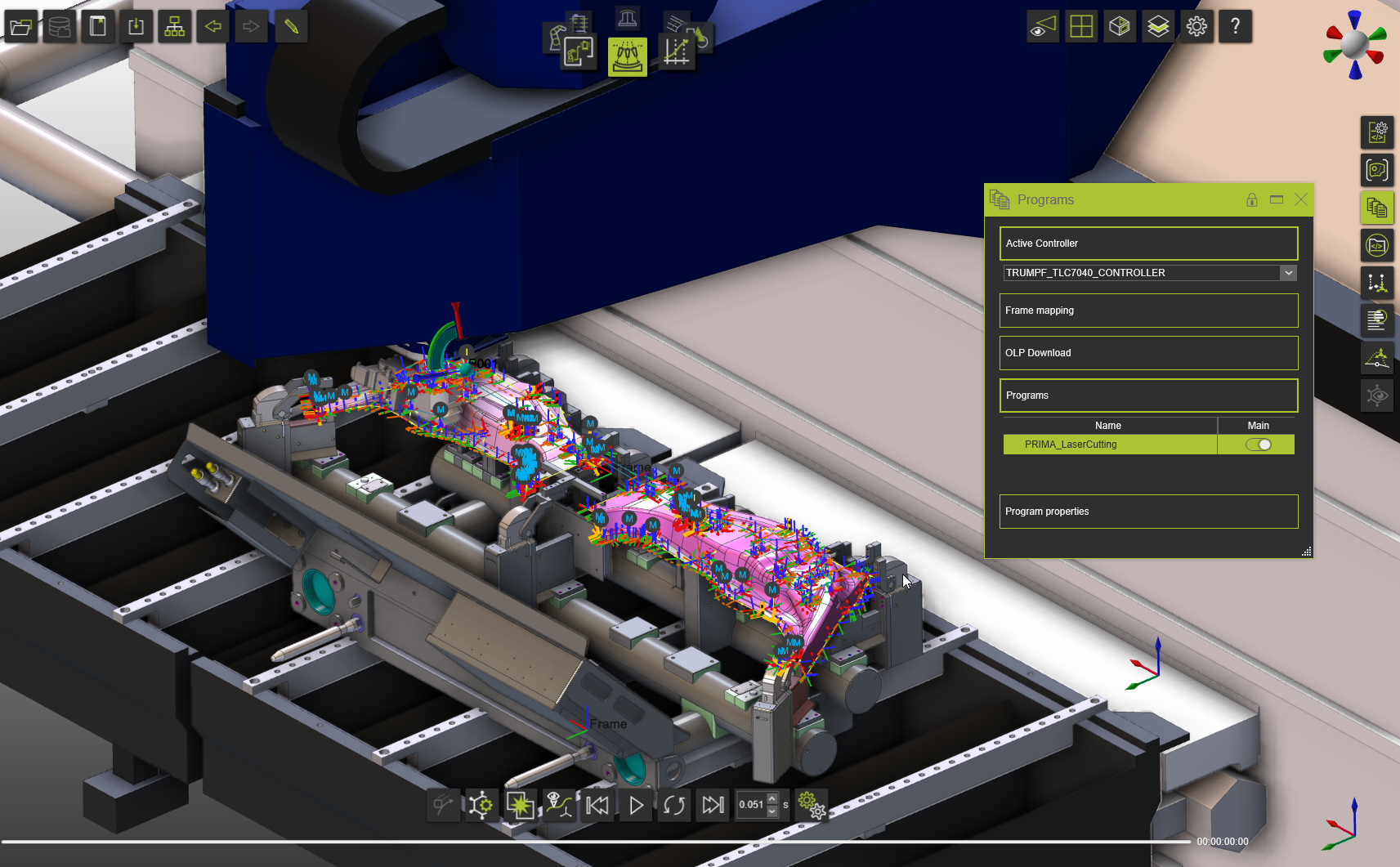

Machine B:

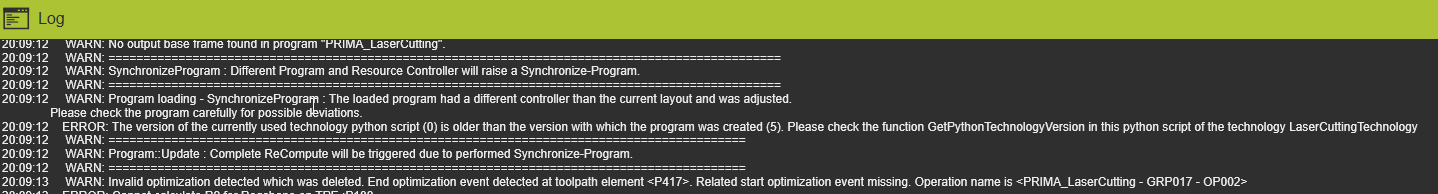

Synchronization report in E2 Log:
